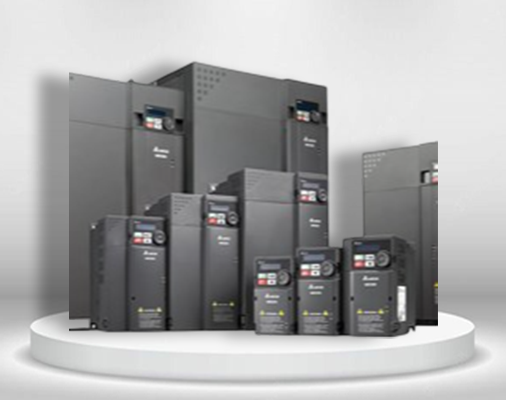

MH300 Series
+
MH300 Series
Delta’s High Performance Compact Drive MH300 series is a new generation micro vector control that inherits Delta’s superior drive technology. With its advantages of outstanding drive performance, strong system support, and a variety of essential functions, the MH300 series is the key to improving market competitiveness and ensuring success. In addition, it features a USB port to make data uploads and downloads fast and easy, which saves the need for additional hardware and provides more installation space for the power cabinet.
Specifications
- Overload capacity: Up to 150% for 60 seconds, and 200% for 3 seconds – ideal for constant torque applications
- Motor compatibility: Supports both induction and permanent magnet motors with optional PG cards for precise speed and position control
- High torque at low frequency: 0.5 Hz / 200% without PG vector control; 0 Hz / 200% with PG vector control
- Constant tension control: Built-in feature for stable performance
- Control modes: Speed, torque, and position control supported
- Integrated PLC: Built-in 5k steps for system programming
- Safety: Built-in STO (SIL2 / PL d) safety function
- DC bus support: All models connect via a common DC bus
- Communication interfaces: Built-in Modbus and CANopen
- EMI filtering: Optional models with built-in filters available
- 24V support: Optional power supply card
- Pulse input/output: Two 33 kHz high-speed pulse inputs and one output terminal
- Card expansion: Two accessory slots
- Digital I/O expandability: Expandable to 6 ports total
- Relay expandability: Expandable to 2 or 3 relay outputs

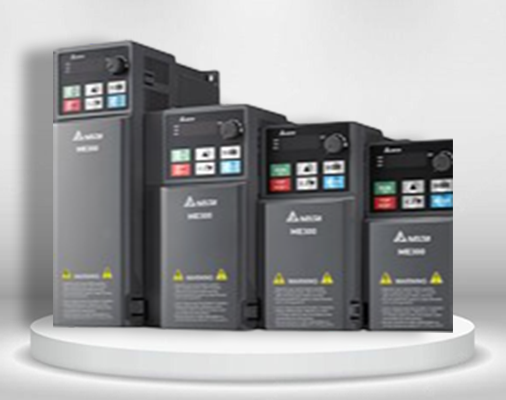

ME300 Series
+
ME300 Series
Delta‘s ME300 Series is a new generation compact vector control drive that inherits Delta’s superior drive technology, but with a 60% reduction in size. It supports both IM and PM motors, providing higher efficiency and flexibility. Various built-in essential functions are standard to reduce the need for additional expenses and to shorten installation time. The STO function is an option that prevents damage.
Specifications
- Motor compatibility: Supports IM, IPM and SPM motors with VF and SVC
- Starting torque: Up to 200% rated starting torque at 3 Hz
- Multi-motor control: 2 sets of motor parameters supported
- Input compatibility: Supports high-speed pulse and PWM signal input
- Pump control: Built-in single and multi-pump functionality
- Braking: Built-in braking choppers across the entire series
- EMC filter: Optional for 1-phase 230V and 3-phase 460V models
- Safety feature: Optional Safe Torque Off (SIL2 / PLd)
- Durability: IEC 60721-3-3 class 3C3 compliant PCB coating

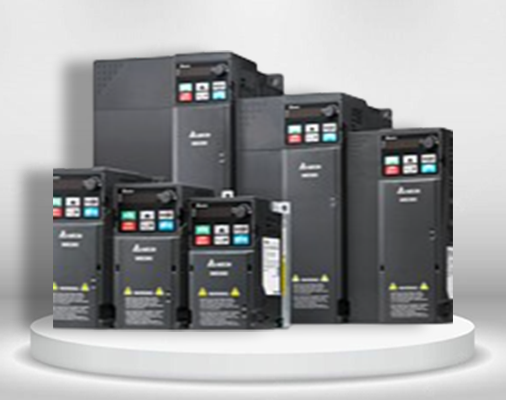

MS300 Series
+
MS300 Series
Delta's MS300 series is a standard compact vector control drive that inherits Delta’s superior drive technology. It supports both IM and PM motor control for application flexibility and provides STO safety mechanism. Also built-in various essential functions, including PLC capacity for simple programming needs, a communication slot for various communication cards, and a USB port to make data uploads and downloads fast and easy.
Specifications
- Motor control: Supports open loop control of IM and PM motors
- Built-in PLC: 2K steps capacity
- Braking: Built-in brake choppers across the entire series
- Keypad: Removable 5-digit LED keypad
- Safety: Safe Torque Off (SIL2/PLd) compliant
- Multi-motor control: Parameters for four IM motors
- EMC filter: Optional built-in Class A filter
- Durability: IEC 60721-3-3 class 3C2 PCB coating
- Communication: Built-in RS-485 and optional communication cards

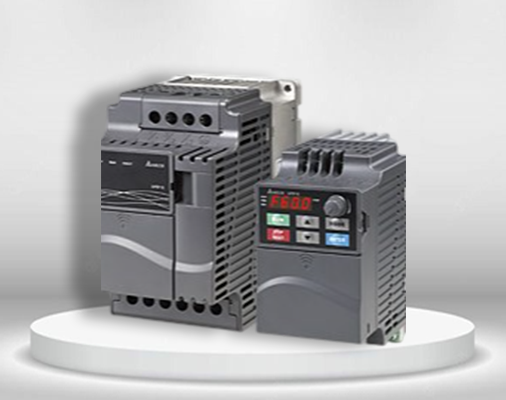

VFD-E Series
+
VFD-E Series
Sensorless Vector AC Micro Drive. The VFD-E series represent Delta Electronics low horsepower, constant torque, IP20 rated Drive. Modular in design with flexible extension cards and a built-in PLC function, the E drive offers the ability to write and execute simple Ladder Logic programs.
Specifications
- Output Frequency: 0.1 to 600 Hz
- Design: Modular and compact design
- PLC: Built-in PLC function
- EMI Filter: Built-in EMI filter
- Fieldbus Modules: Optional support for DeviceNet, Profibus, LonWorks and CANopen
- RFI-Switch: Included for mains
- DC Bus Sharing: Easy DC BUS sharing supported
- Extension: Flexible extension options
- Protection: Complete system protection features

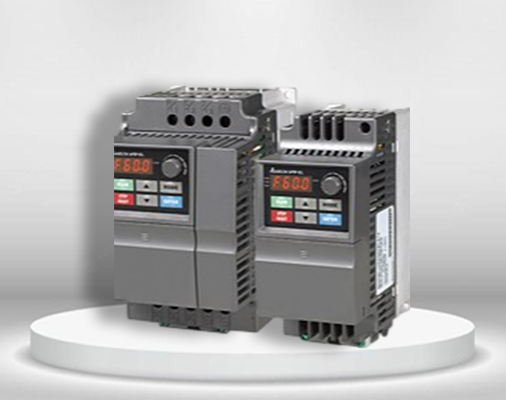

VFD-EL Series
+
VFD-EL Series
The VFD-EL series is multiple function new generation micro type AC drive. It has built in EMI filter, RFI switch, easy DC bus sharing for side-by-side installation, high precision current detection, overload protection, and a built in keypad.
Specifications
- Output Frequency: 0.1 to 600 Hz
- V/f Curve: 3-point adjustable V/f curve
- PID Control: Built-in PID feedback control
- RFI-Switch: For IT mains
- EMI Filter: Built-in EMI filter
- Communication: RS-485 interface with Modbus protocol
- Optional Protocols: Profibus, DeviceNet, LonWorks and CANopen
- Protection: Complete system protection functions

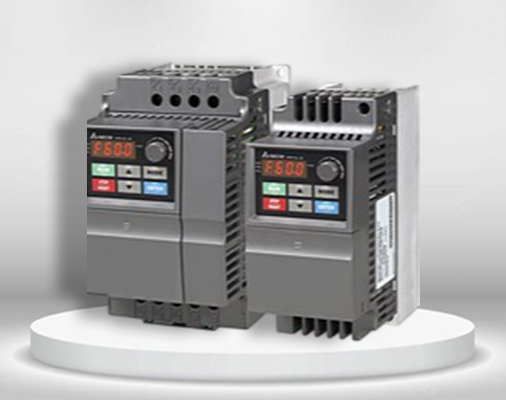

VFD-EL-W Series
+
VFD-EL-W Series
Delta’s VFD-EL-W series is a next-gen compact vector control drive designed with simplicity, durability, and advanced features. It includes built-in functions such as multi-step operation, torque compensation, PID control, multi-pump and constant pressure water supply, and leakage detection.
Specifications
- Design: Compact, simple and durable
- Control Modes: Multi-speed operation via digital panel, terminal and Modbus
- Pump Control: Multi-pump control and PID control
- Motor Support: One drive with two motors in parallel
- Overload Capacity: 150% rated current for 1 minute
- Certifications: CE, RoHS, GB12668.3

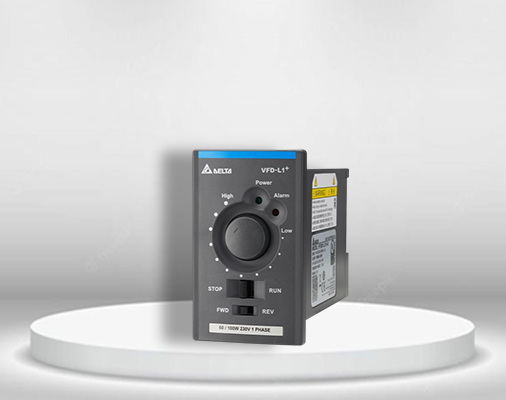

VFD-L1 Plus Series
+
VFD-L1 Plus Series
Inheriting the features of the L1 Series, Delta’s new Compact AC Motor Drive L1 Plus Series retains the compact size and stability of its previous generation to ensure a seamless transition. The adjustable V/f curve function makes operation more flexible.
Specifications
- Output Frequency: 0.1 to 600 Hz
- V/f Curve: 3-point adjustable V/f curve
- PID Control: Built-in PID feedback control
- RFI-Switch: For IT mains
- EMI Filter: Built-in EMI filter
- Communication: RS-485 interface with Modbus protocol
- Optional Protocols: Profibus, DeviceNet, LonWorks and CANopen
- Protection: Complete system protection functions
