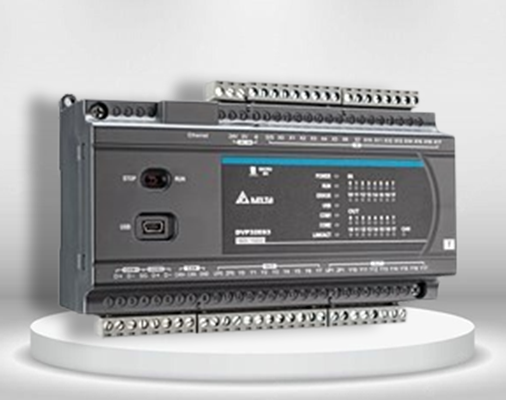

DVP-ES3 Series
+
DVP-ES3 Series
Delta’s third generation DVP PLCs ES3 series employs the AS series PLC’s 32-bit high-speed processor, provides a user-friendly programming interface, 4 high-speed counter inputs, and up to 4-axis control outputs (pulse). The ES3 series supports 8-axis (CANopen) position outputs (ES3 only) and EtherCAT (ES3-TEC only). Features also include multiple communication ports with robust network functions that enhance integration and connections. Compared with the previous generation, the ES3 series offers a larger capacity, faster execution speed, and enhanced interoperability.
Specifications
- High-performance PLCs ideal for medium-scale automation systems
- Supports a wide range of industrial communication protocols
- Features built-in I/O points and supports modular expansion
- Designed for demanding applications requiring speed, reliability, and network connectivity
- Product Introduction
- Processing machines
- Injection molding machines
- Packaging machines
- Precision textile machines
- Large-scale warehousing systems
- Logistics automation systems

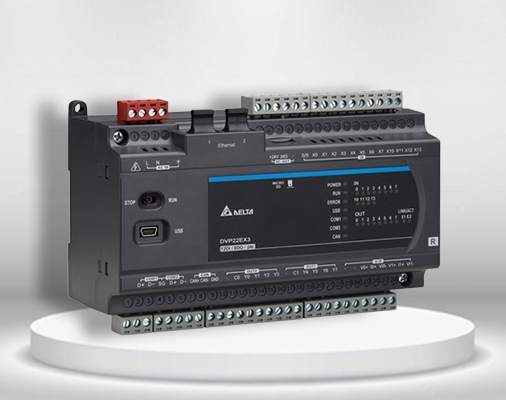

DVP-EX3 Series
+
DVP-EX3 Series
To fulfill the market demand for versatile, value-added programmable logic controllers, Delta’s third generation DVP PLCs EX3 series employs the AS series PLC’s 32-bit high-speed processor with a user-friendly programming interface, built-in analog I/O, and multiple communication ports. Compared with the previous generation, the EX3 series upgrades execution performance, expands program capacity, and enhances interoperability.
Specifications
- Ultra-fast execution speed of 25 ns for basic instructions
- Supports new DIADesigner software and AS series instructions for flexible programming
- Large program capacity up to 64K steps
- Maximum I/O capacity of 256 points, with support for analog I/O
- Enhanced connectivity with 2 Ethernet ports (RJ45), 1 CAN port, USB, RS-485, and Micro SD card interface
- Compatible with EtherNet/IP and CANOpen DS301 for robust network communication
- High-speed cutting machines
- Bar feeders
- Food packaging systems
- Textile machines

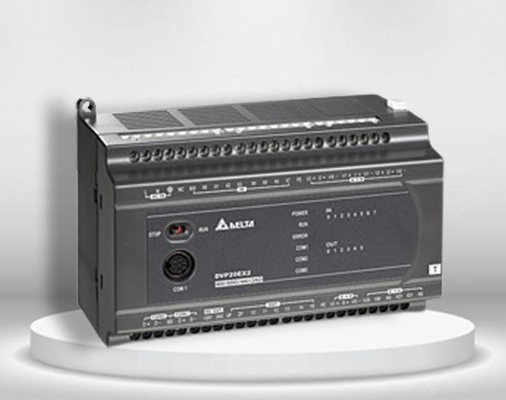

DVP-ES2 Series
+
DVP-ES2 Series
ES2 series is a small PLC for basic sequential control. It is economical, highly efficient and functional.
Specifications
- HVAC systems
- Molding injection machines
- Big storage and warehouse management systems
- Packaging machinery
- Precise textile machines
- Logistic systems
- Range
- 0.18 kW to 710 kW
- Frame
- IEC 80 to 500 in cast iron
- IEC 63 to 160 in Aluminum
- NEMA 143 to 504 in cast iron
- NEMA 56 to 256 in Aluminum
- Mounting
- Foot/Flange/Face
- Pole
- 2 to 10 Others on request
- Frequency
- 50 or 60 Hz
- Ambient Temp.
- -20 to + 50 ° C Others on request
- Protection
- IP 55; Others on request
- Feature
- Inverter Compatible

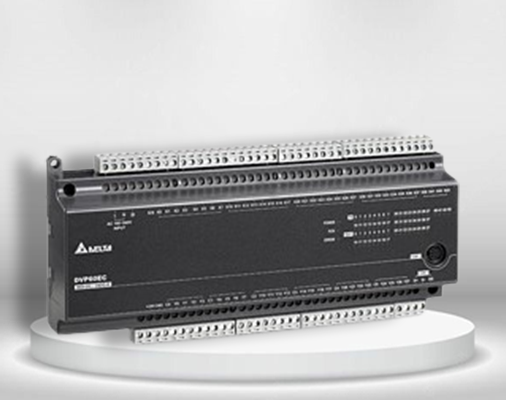

DVP-EC3 Series
+
DVP-EC3 Series
EC3 series is the most economical solution for sequential control and communication monitoring and can operate independently, allowing the user to achieve stand-alone monitor, e.g. monitoring phototransistor coupler, proximity switch, optical sensor, indicator and illumination switch. Through serial ports, EC3 is able to connect to control devices such as PLC, frequency inverter and temperature controller, which can be said to be a programmable application solution that is cost-friendly and highly reliable.
Specifications
- Single control unit systems
- Landscape fountain automation
- Building automation solutions
- MPU Points
- 10 / 14 / 16 / 24 / 32 / 60
- Max. I/O Points
- 60
- Program Capacity
- 4K steps
- Communication Ports
- RS-232 and RS-485 ports built-in (available in 16 to 60 point models)
- Compatible with Modbus ASCII/RTU protocol
- High-Speed Counters
- Built-in 4 points of high-speed counters*

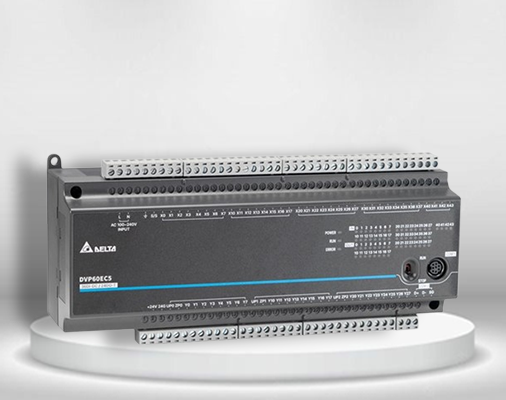

DVP-EC5 Series
+
DVP-EC5 Series
The DVP-EC5 Series fulfills the market demand for advanced PLCs with a user-friendly programming interface, faster execution of high-speed pulse input/output, and expanded program capacity. The upgrade from the previous EC-3 aligns with demands for a versatile programmable logic controller.
Specifications
- Enhanced program capacity supports up to 16K steps (EC5)
- High-speed pulse output: 4 points at 50 kHz (EC5)
- High-speed pulse input: 2 points at 50 kHz (EC5)
- Supports up to 8 external interrupt inputs
- Packing machinery
- Landscape fountains
- Building automation systems
- Programming Language
- IL, LD, SFC
- Program Capacity
- 16K steps
- Execution Speed
- LD: 0.98 µs MOV: 3 µs
- High-Speed Pulse Input
- 2 x 50 kHz / 8 external interrupts
- High-Speed Pulse Output
- 4 x 50 kHz
- Serial Ports
- RS232 x1 (M/S) RS485 x1 (M/S)
- Latched
- Flash ROM
- Extension Modules
- No
- RTC
- Stops when power is off

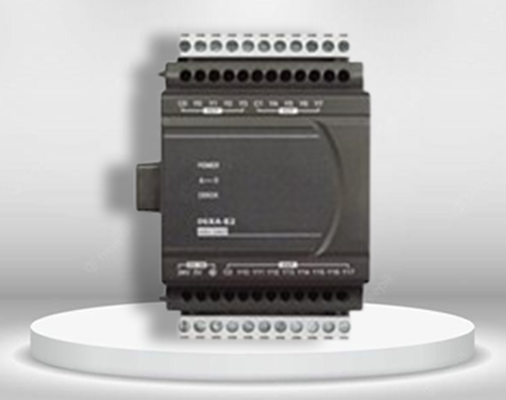

DVP-ES3/ES2 Series Expansion Module
+
DVP-ES3/ES2 Series Expansion Module
EC3 series is the most economical solution for sequential control and communication monitoring and can operate independently, allowing the user to achieve stand-alone monitor, e.g. monitoring phototransistor coupler, proximity switch, optical sensor, indicator and illumination switch. Through serial ports, EC3 is able to connect to control devices such as PLC, frequency inverter and temperature controller, which can be said to be a programmable application solution that is cost-friendly and highly reliable.
Specifications
- Features & Benefits:
- Digital modules: Available in 8, 16, and 32-point configurations (supports AC power).
- Analog modules: 4 or 6-channel input options with 14-bit resolution.
- Conversion time: 200ms per channel
- Accuracy: ±0.6%
- Supports RTD: Pt100 / Pt1000 / Ni100 / Ni1000
- Supports thermocouple types: J, K, R, S, T, E, N
- Resolution: 12-bit
- Distance: Up to 50 meters
- Speed: 500rpm
- Disconnection detection supported
- Applications:
- HVAC systems
- Printing machines
- Packaging machines
- Molding injection machines
- Inspection systems
