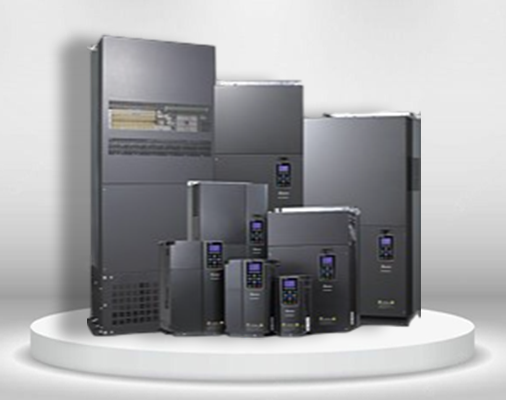

C2000 Plus / C2000 Series

The C2000 Plus Series offers precise speed, torque, and position control for both sensor and sensorless synchronous/asynchronous motors. With enhanced overload capacity and a power range up to 560 kW, it ensures superior performance and stability for heavy-duty and constant torque operations across industries like manufacturing, food processing, chemicals, metalwork, plastics, and infrastructure.

Specifications

• Heavy-duty overload capability: 150% for 60 sec. and 180% for 3 sec. at rated current
• Sensorless vector control for IM / PM / SynRM motors
• IP55 fans, efficient heat sink, and Class 3C3 conformal PCB coating
• Built-in PLC with 10k steps and remote I/O integration for CANopen / Modbus master stations
• Advanced control functions: positioning, master/slave torque, electromagnetic energy traction control, etc.
• Optional communication cards: EtherCAT, EtherNet/IP, DeviceNet, PROFINET, PROFIBUS DP, Modbus TCP, CANopen
• Extruders
• Rubber millers
• Injection molding machines
• Pipe bending machines
• Conveyance systems
• Winding machines
• Bridge cranes
• Stage lifting systems
• Glass tempering furnaces
• Electromagnetic stirrers

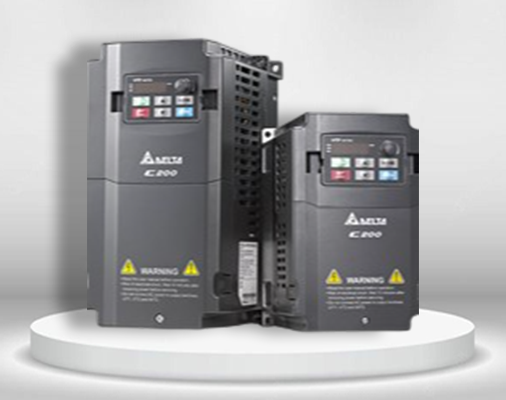

C200 Series

The VFD-C200 Series is an intelligent vector control micro drive that provides versatile control modes for motors and includes built-in PLC functions with capacity up to 5,000 steps. It is suitable for harsh environment applications with a strengthened thermal and anti-dust design that provides comprehensive protection.

Specifications

• Built-in PLC program with 5,000 steps capacity
• Built-in brake chopper
• Modbus RS-485 and CANopen (Slave)
• High-brightness LED keypad compatible with VFD-E/M/B Series extension cable
• Supports open loop control of permanent motors (PM Sensorless)
• Two high speed pulse input terminals (MI7 and MI8) up to 33kHz
• Two high speed pulse output terminals (DFM1 and DFM2) up to 33kHz
• New PCB coating (IEC 60721-3-3 class 3C2) and thermal design for harsh environments
• Frame A supports wall-mounted installation

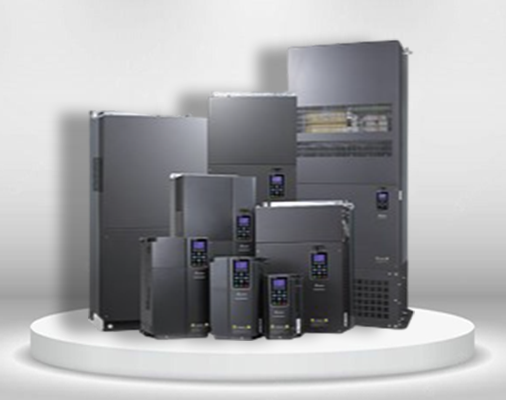

CH2000 Series

Using new drive technology, Delta presents you with its next generation CH2000 Series AC Motor Drive. Providing high performance with robust design the CH2000 is equipped with a larger starting torque and high overload capability to fulfill the needs of heavy load and impact loading applications.

Specifications

• Super Heavy Load (SHD) capability
• Overload ability: 150% of rated current for up to 60 seconds, 200% for up to 3 seconds
• Starting torque: above 200% at 0.5Hz in normal conditions, up to 200% at 0Hz in FOC+PG mode
• Output frequency: 0.00~600.00Hz (0.00~400Hz for models above 90kW)
• Supports control of both induction and synchronous motors
• Built-in PLC with 10K steps program capacity
• Noise reduction function

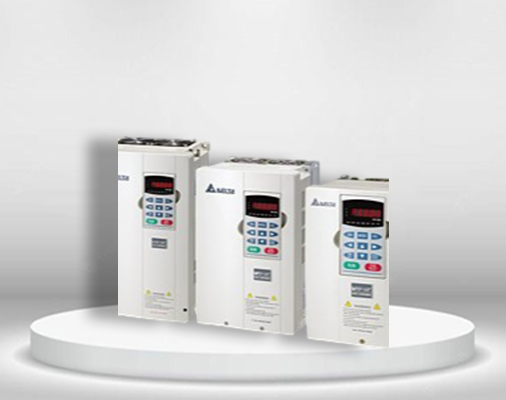

VFD-VE Series

This series adopts FOC (Field Oriented Control) which is a far more precise vector control algorithm. It can be used in both speed control and position control similar to a servo motor drive. The multi-function I/O terminal is expanded to meet users' various application needs. In addition, it is supplied with a Windows based PC software program for managing parameters and dynamic monitoring. It provides an excellent solution for load regulation. It can output 150% of rated torque at zero speed, and it can have "point to point" and relative distance control functions for position control, making it the best choice for challenging industrial control applications.

Specifications

• Output frequency: 0~600Hz
• 4 points adjustable V/F curve, Sensorless Vector Control, Field-Oriented Control
• Supports Position, Speed, and Torque control modes
• Sensorless Vector Control provides 150% torque at 0.5Hz
• Delivers 150% holding torque with speed feedback
• Overload capacity: 150% for 1 minute and 200% for 2 seconds
• Rotational/Static Auto-tuning for motor parameters and Auto-tuning for load inertia
• Excellent torque limit performance in all 4 quadrants of operation
• Dual RS-485 ports, supports Fieldbus and PC software tools for applications

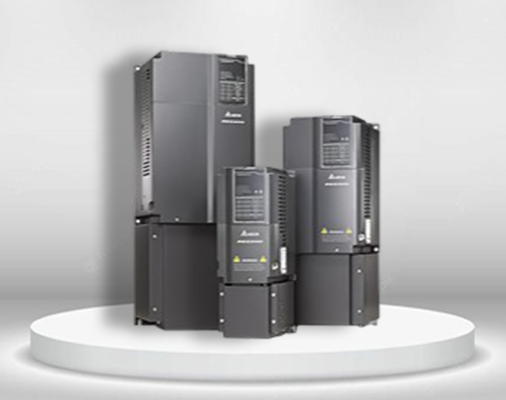

REG2000 Series

A traditional drive system used for inertia load work generally performs rapid deceleration, braking and positioning. When its motor is in generator mode it produces large amounts of regenerative energy that must be consumed to maintain a stable DC bus voltage and safe operation. The traditional method to solve the regenerative energy problem is to install a brake resistor. While it is easy to install and is low cost, it takes up a large amount of space and requires installing additional devices to dissipate the heat. This method provides limited efficiency and wastes the regenerative energy. Delta's REG2000 series is capable of collecting and converting your system's regenerative energy into reusable electricity for the ultimate in energy savings. The installation process is as simple as installing a brake resistor, but with only half the size and better efficiency. The REG2000 is your best green energy solution for power regeneration.

Specifications

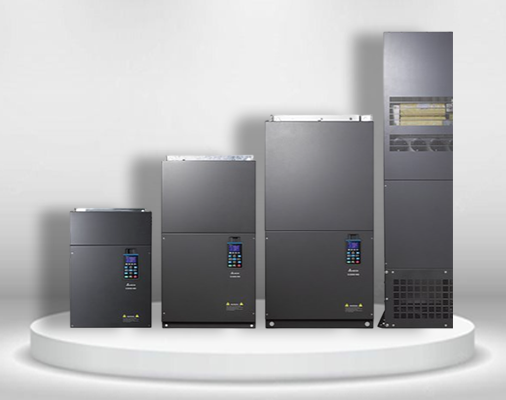

C2000-HS Series

High-speed centrifugation is essential for boosting efficiency and reducing equipment costs in fluid-mechanical applications. Delta’s C2000-HS Series High Frequency Motor Drive delivers exceptional performance with output frequencies up to 1,500 Hz, enabling faster flow rates and precise high-speed motor control. Designed with energy efficiency in mind, it’s the ideal solution for high-speed fluid-mechanical systems.

Specifications

• High-Speed Operation: Supports max. operating frequency up to 1,500 Hz, enabling precision performance even in high-speed applications.
• Direct Drive Mechanism: Eliminates the need for gearboxes, reduces system complexity, and improves overall efficiency and cost-effectiveness.
• Compact Design: Matches with high-capacity motors without requiring larger power range drives, saving on both cost and space.
• Sensorless Motor Control: Built-in motor ID parameters with FOC sensorless control provide smooth, stable output speed with a control precision of 1:100.
• Advanced IGBT Technology: Delivers high drive efficiency (up to 98%) even at high carrier frequencies and minimizes derating effects.
• Built-in DC Reactor: Effectively suppresses high harmonics and complies with EN61000-3-12 standards, ensuring stable and reliable operation.
