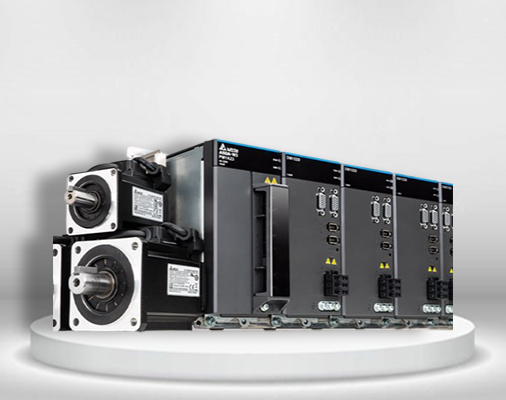

ASDA-W3 Series
+
ASDA-W3 Series
The ASDA-W3 Series features a modular design for flexible configuration and space efficiency, with a built-in DC bus for energy savings. Designed for multi-axis, high-speed, high-precision applications, it offers fast response, vibration suppression, friction compensation, and auto-tuning. Supporting advanced motion control (linear, arc, spiral, gantry), it ensures precise tracking and is SIL3 STO compatible for enhanced safety.
Specifications
- Up to 3.5 kHz bandwidth that reduces settling time by 40% compared to previous models
- Supports 27-bit high-resolution absolute type encoder
- Built-in motion control, supports multiple sets of gantry motion and pressing control
- Common DC bus regenerates energy
- Advanced automatic gain adjustment and system analysis interface
- Swing suppression and system modeling functions

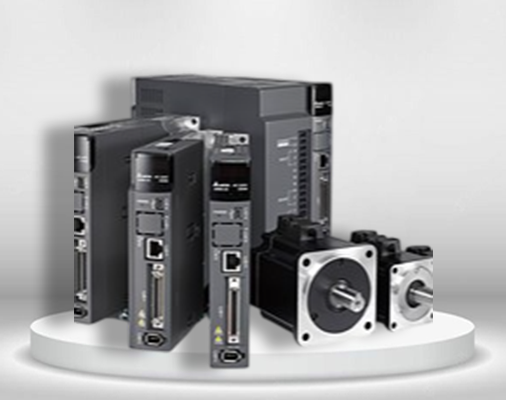

ASDA-A3 Series
+
ASDA-A3 Series
Delta’s ASDA-A3 Series is a high-end AC Servo System designed for advanced industrial automation. With 3.1kHz bandwidth and a 24-bit absolute encoder, it delivers high-speed, high-precision performance. Key features include auto-tuning, vibration suppression, system diagnostics, and a shared DC-bus for energy regeneration. Compact and energy-efficient, the ASDA-A3 enhances machine precision and productivity in demanding applications.
Specifications
- 3.1 kHz Bandwidth
Higher responsiveness and shorter settling time increases productivity - 24-bit Absolute Type Encoder
16,777,216 pulses/turns ensure precise positioning
Steady performance at low-speed enhances machining quality
Keeps motor's position during power shortage - Advanced Motion Control – E-CAM & 99 Sophisticated Motion
E-CAM & 99 sophisticated motion commands and segments allowed
Graphical user interface offers simple setup and programming
Arithmetic operation / comparison commands available
General motion functions such as homing, position and speed commands
Superimposition, blending, and jump change motion commands provided
