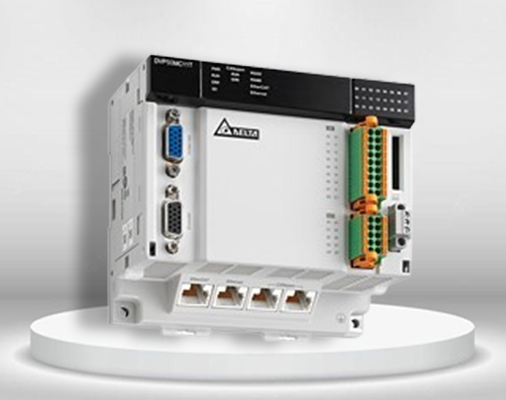

DVP-50MC
+
DVP-50MC
DVP50MC is a type of multi-axis motion controller researched and produced by Delta autonomously on the basis of EtherCAT technology. It supports standard instruction libraries defined by international organizations for motion control and brings great convenience to user to learn and develop projects quickly. Maximum 24 real axes can be controlled by means of EtherCAT port. The single-axis motion instructions including velocity, position, torque and homing instructions as well as multi-axis instructions such as electronic gear, electronic cam, rotary cut and G code are supported.
Specifications
- Supports encoder and virtual axes
- Built-in motion control instructions with Jerk and BufferMode
- Single-axis motion control: speed, torque, homing, and position setup
- Application instructions: electronic gear, E-CAM, and rotary cut
- G-code and multi-axis group interpolation: 8 axes linear, arc, and helical
- 1 GHz high-speed floating point processor
- Supports double-precision floating-point format (LREAL)
- Synchronization time for 24 axes: 1 ms
- Program capacity: 20 MB
- Data capacity: 20 MB

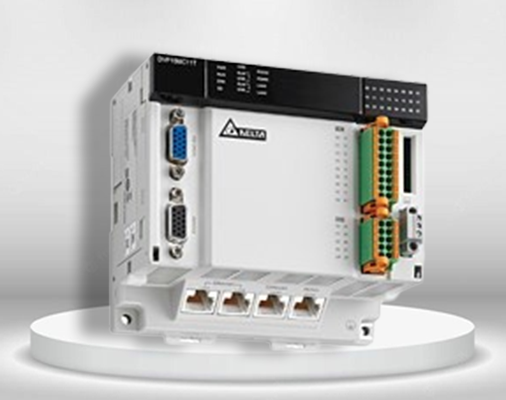

DVP-15MC
+
DVP-15MC
DVP15MC11T is a type of multi-axis motion controller researched and produced by Delta autonomously on basis of CANopen field bus. It complies with CANopen DS301 basic communication protocol and DSP402 motion control protocol. In addition, it also supports standard instruction libraries defined by international organizations for motion control. It brings great convenience to user to learn and develop projects quickly. Maximum 24 axes can be controlled by means of Motion port. The single-axis motion instructions including velocity, position, torque and homing instructions as well as multi-axis instructions such as electronic gear, electronic cam, rotary cut and G code are supported.
Specifications
- MPU Points: 20 (8 Digital Inputs / 6 Digital Outputs, 4 Analog Inputs / 2 Analog Outputs)
- Maximum I/O Points: 494 (14 built-in + 480 expandable)
- Program Capacity: 16k steps
- Built-in RS-232, RS-485 & USB
- Supports ASCII/RTU protocol
- Operates as Master or Slave
- 2 points (Y0, Y2) at 100kHz
- 2 points (Y1, Y3) at 10kHz
- Built-in High-Speed Counters
- Built-in Analog I/O for precise signal monitoring and control
- PID temperature and humidity control
- 2-axis AC motor drive for constant speed control
- Temperature control using analog signal monitoring
- Factory-wide monitoring and control using PLC EASY LINK

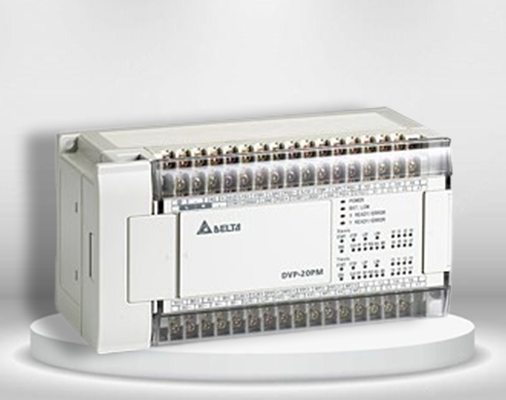

DVP-20PM
+
DVP-20PM
The advanced PM series motion control MPU can become the motion extension module of another PM series MPU, very flexible in all kinds of applications.
Specifications
- MPU points: 16
- Max. I/O points: 512
- Program capacity: 64K Steps
- Built-in RS-232 and RS-485 ports
- Compatible with MODBUS ASCII / RTU communication protocol
- Data register: 10,000 words (latched)
- High-Speed Pulse Output: 500KHz
- Built-in 2 groups of A/B phase differential signal output
- Forward pulse: (FP0+, FP0-)
- Reverse pulse: (RP0+, RP0-)
- 2-axis servo positioning control
- Material cutting machines (high-speed servo control)
- Crane operations
- Material clippers controlled by servo

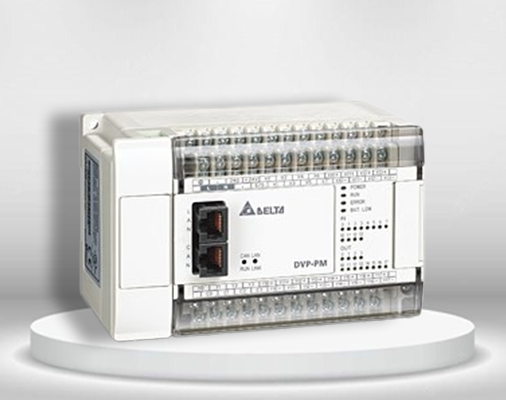

DVP-10PM
+
DVP-10PM
This series highlights high-speed command execution speed (basic command LD for 0.1375μs, application command MOV for 2.1μs and 1MHz differential output*4) to achieve precise motion control.
Specifications
- 2-axis servo positioning control
- Material cutting machines (high-speed servo control)
- Crane operations
- Material clippers controlled by servo systems
- MPU points: 24
- Max. I/O points: 256
- Program capacity: 64K steps
- Built-inhardware digital filter for input signal counting
- Supports U/D, U/D Dir, and A/B output modes
- 4 open-collector 200kHz counters
- 2 differential 200kHz counters
- Supports U/D, U/D Dir, A/B, and 4A/B counting modes
DVP-MC Series Expansion Module
+
DVP-MC Series Expansion Module
The 2nd generation DVP-SA2 series slim type PLC offers bigger program capacity and executing efficiency, offering 100 kHz high-speed output and counting functions. It is extendable with DVP-S series left-side and right-side extension modules.
Specifications
- Digital modules: Input/output/mixed configurations
- Analog modules: Input/output/mixed configurations
- Temperature measurement and control modules
- High-speed, high-accuracy load cell modules
- Comprehensive network modules for industrial connectivity
- Remote I/O communication modules for distributed automation
- Remote device monitoring
- Production line monitoring
- Building automation
- Printing machines
- Container fillers with recipe-based control

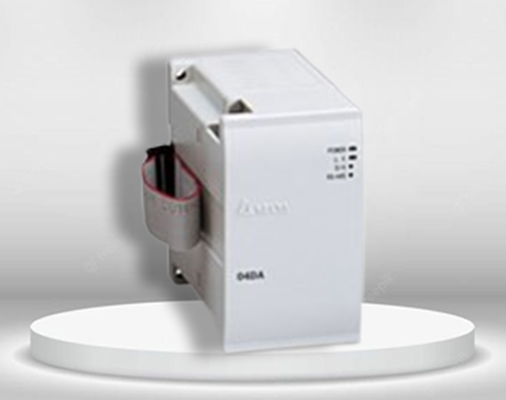

DVP-PM Series Expansion Module
+
DVP-PM Series Expansion Module
This advanced modular I/O system is engineered for modern industrial automation environments requiring flexible, reliable, and scalable control solutions. Supporting a wide range of digital and analog input/output configurations, temperature sensing modules, and robust network connectivity, the system is ideal for applications that demand high-performance monitoring and control.
Specifications
- Supports various I/O module types: Digital (input/output/mix), Analog (input/output/mix)
- Precise temperature measurement with RTD and thermocouple inputs
- Flexible network connectivity for easy integration into existing systems
- Remote device monitoring
- Production line monitoring
- Printing machines
- Container filler systems using recipe-based control
